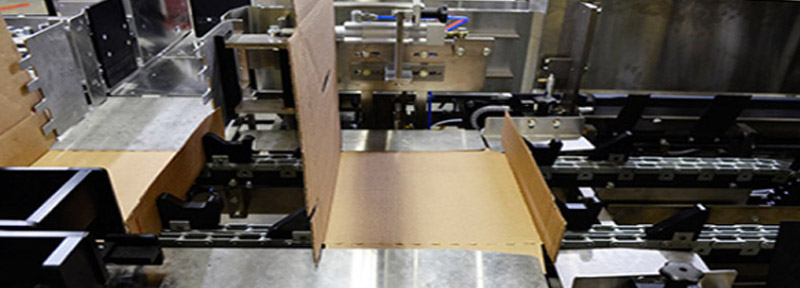

Wrap Around Case Packer
The Wrap Around Case Packer places product from the side or top of the wraparound, harness style, or tray blank.
Massman Automation is the industry leader in wraparound case packing. The benefits of wraparound case packing are numerous, such as flat blank storage and shipment and greater case blank magazine capacity. Typically, corrugate use is lowered and the cost per blank is less due to the unglued manufacturer’s joint. Improved palletizing can be achieved because the loaded Wrap Around cases are more square than a typical RSC type case.
| Specifications | Standard option | Additional Options |
| CASE BLANK CAPABILITIES | Wrap Around blanks | Tray style case blanks Harness style case blanks Knock down (KD) style case blanks |
| INFEED OPTIONS | Lane divider with grouping (ideal for bottles & jugs) High speed rotary upstacker (ideal for cartons) Low speed bump upstacker (ideal for cartons) Flood feed (ideal for cans) Racetrack infeed (ideal for cartons & sleeved product) Indexing paddles (ideal for cartons & sleeved product) |
|
| PRODUCT LOADING | Servo driven cross push mechanism | Mechanical gripper Vacuum gantry Overhead loader Robotic |
| MAGAZINE | 3’ standard power-feed magazine | 6’ power-feed magazine Low level magazine Dual blank magazine Opposing cup case setup |
| GLUE SYSTEM | NORDSON ProBlue® Series or Tape | Inside manufacturers flap Inline compression of manufacturers fl ap |
| GUARD DOORS | Aluminum extruded frame with 1/4” clear or dark acrylic panels | Stainless steel mesh panels |
| FRAME | 3”x3”x1/4” wall tubular mild steel frame | 300 series stainless steel 300 series stainless steel with no penetrations |
| ELECTRICAL | Allen Bradley Human Machine Interface (HMI) Allen Bradley Panel View 700 with ethernet capabilities (wago) Allen Bradley compact logix PLC with ethernet capabilities Allen Bradley guard door switches (interlock doors) Bosch indramat servo motors and drives Allen Bradley 3-color light stack with audible alarm NEMA 12 electrical enclosure with external power receptacle and computer port Interface wireway Category III safety circuit 480 VAC, 3ø, 60 Hz |
Allen Bradley PV 1000+ ethernet capabilities Allen Bradley control logix PLC with ethernet capabilities Allen Bradley Kinetic 6000 servo motors and drives NEMA 4x electrical enclosures and standards 240 VAC, 3ø, 60 Hz |
| PNEUMATICS | Busch dry vane vacuum pump SMC valves and cylinders Parker fi ttings | Venturi vacuum generators Centralized enclosure |
| ADJUSTMENTS | Digital indicator with handwheels | Power adjustment for movements over 12” |
